Focusun Block Ice Machine
Focusun ™ Block Ice Machine adopts the world's most advanced block ice making technology and we are proud to be one of the global leading manufacturers of this innovative cooling solution.
We have a wide range of block ice solutions; you can choose either from a Brine or Direct System of cooling depending on your requirement. Our Brine and Direct Systems of block ice plants can also be containerized to allow for a mobile ice manufacturing process, better space planning or convenient relocation. We save you from the trouble of assembling and disassembling.
We have our standard dimensions: 5 kg 125×100×460, 10kg 155×100×750, 15 kg 185×125×750, 20 kg 245×125×750, 25 kg 315×125×750, 50 kg 480×160×750, 75 kg 420×200×1000, 100 kg 500×220×1000 (mm). You can also customize the production capacity of your block ice plant, including the dimensions of your ice blocks to fit your requirement.
Here at Focusun, we set no limit to our competence. We believe the sky is the limit! Contact us now and find out more.
Focusun, the global leader in ice cooling solutions!
- Overview

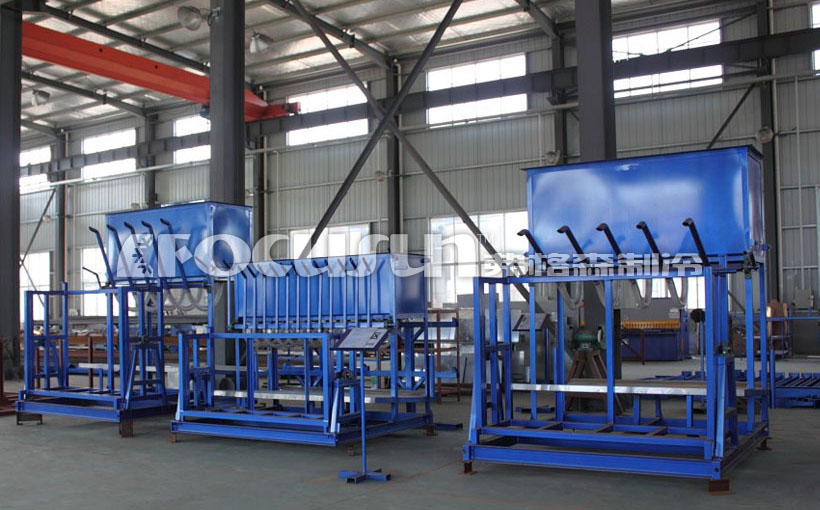

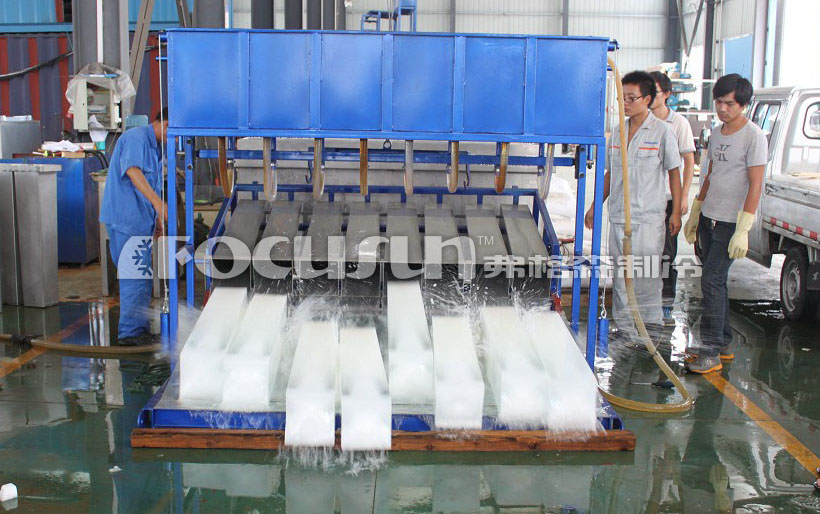

- Brine system

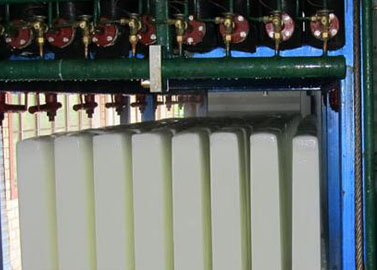

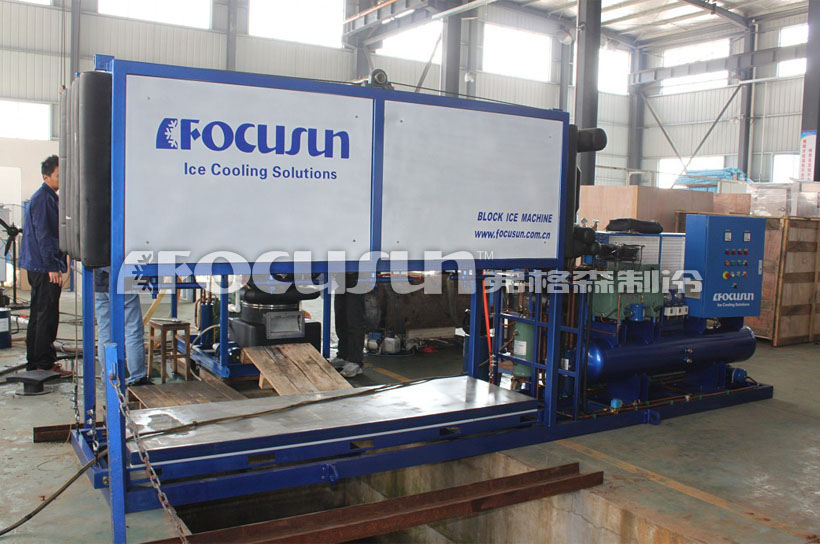

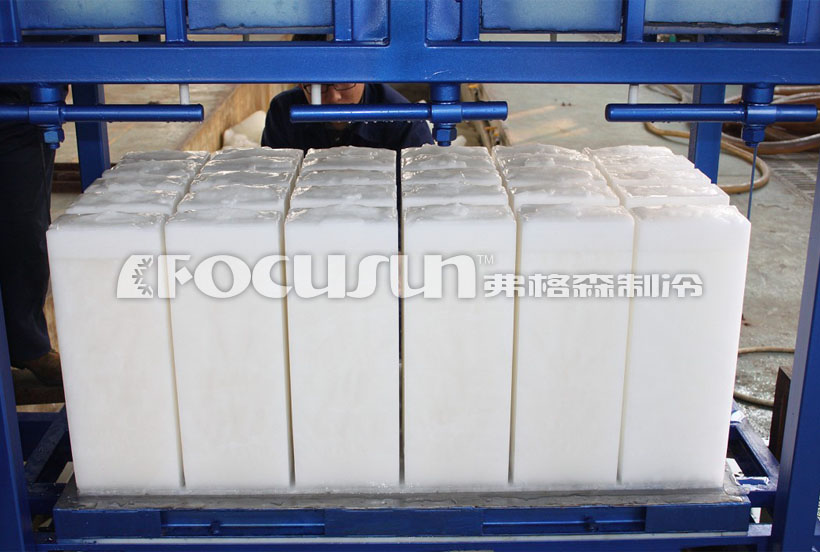

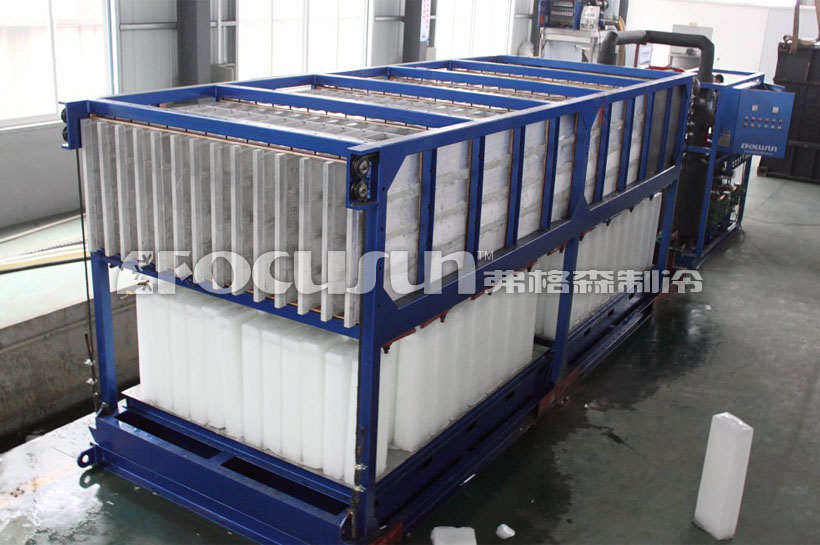

- Direct system
- Containerized system
Focusun is the most professional block ice machine manufacturer in China. To meet your different requirements, we utilize both direct refrigeration and brine refrigeration block ice plants whose capacity ranges from 0.5 T/D to 30 T/D. With our professional technical team, Focusun provides tailored and scientific block ice solutions. The standard weight & size of block ice Focusun produces are listed in the form. The size of the block ice can also be customized to meet your special requirement.
| Weight(kg/block) | Dimension(L*W*H mm) | Ice Making Time(hour) | Batch(times) |
|---|---|---|---|
| 10 | 155×100×750 | 5.5 | 4 |
| 20 | 245×125×750 | 7.5 | 3 |
| 25 | 315×125×750 | 7.5 | 3 |
| 50 | 480×160×750 | 11.5 | 2 |
| 75 | 420×200×1000 | 19.5 | 1 |
| 100 | 500×220×1000 | 22.5 | 1 |
Block Ice Machine

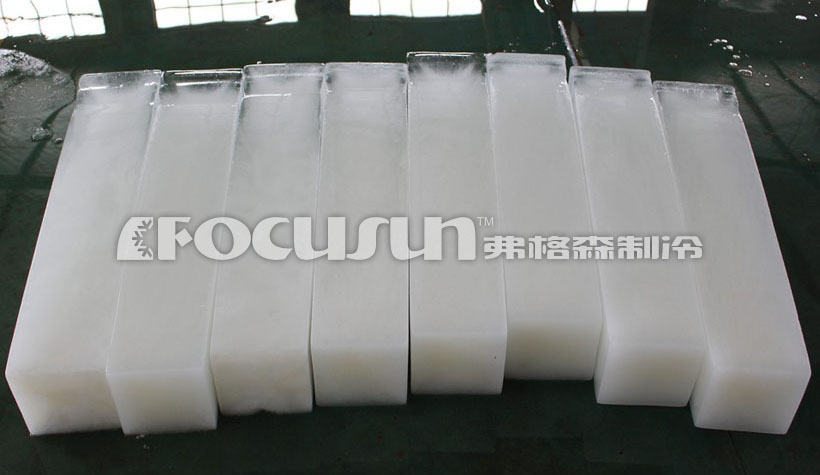

Block ice has a big advantage compared to other forms of ice in tropical countries. Storage, handling and transportation can be simplified if the ice is in form of large blocks. Because of its large dimension and small contact area, block ice does not melt easily. Under same conditions, block ice has the longest storage period compared to other forms of ice. It is usually used to preserve aquatic products, cool fish, reduce temperature, in ice-carving and more. Focusun offers both transparent and milky white ice according to your preferences.
Product Description
Functional Positioning and Target Users of the Focusun block ice machine
The Focusun block ice machine is engineered specifically for industrial and commercial users requiring large-scale block ice production. It serves fisheries, cold storage, food processing, and construction sectors by providing reliable, uniform ice blocks that facilitate temperature control and preservation. As a trusted ice block making machine, it addresses operational demands for durability and consistency, making it an essential component for enterprises seeking an efficient and scalable ice supply. The modular and containerized configurations enhance its adaptability to dynamic production environments, aligning with the logistics and infrastructure requirements of varied industries. This solution is ideal for operations demanding precision in ice size and quantity, ensuring seamless integration with existing cooling processes.
Technical Features and Measurable Specifications of the industrial ice machine
This industrial ice machine incorporates cutting-edge refrigeration technology, offering both brine and direct refrigeration systems tailored to operational preferences. It operates under Siemens PLC automation for precise process control, enhancing reliability and efficiency. The ice block sizes are customizable, ranging from 5 kg up to 100 kg, with typical production capacities spanning 0.5 to 30 tons per day. The titanium pipe evaporator coil ensures superior corrosion resistance and effective heat exchange, supporting sustained operation under rigorous conditions. Cooling is water-based, and refrigerants such as R22 or R404A comply with environmental standards. Overall, this ice making machine achieves approximately 1.5 times faster ice production compared to conventional models, optimizing throughput and reducing downtime.
Industry Applications and Real-World Value of the block ice machine maker
The block ice machine maker is integral in multiple industries that rely on consistent ice block production for process cooling and product preservation. Seafood transport and aquatic product preservation benefit from the extended longevity of the ice blocks, which maintain low temperatures over prolonged periods. In construction, it facilitates material curing by supplying large, durable ice blocks aligned with project schedules. The commercial ice machine also supports artistic uses such as ice carving, and its containerized configuration permits mobile or temporary deployment without compromising capacity or quality. By delivering customizable ice block dimensions, it enhances operational flexibility and resource efficiency across supply chains, contributing measurable improvements in logistics and cost management.
Product Advantages
Structural and System Design Advantages of the commercial ice machine
The commercial ice machine deploys a modular and containerized design that simplifies installation and mobility, eliminating the need for complex assembly or disassembly. Its dual refrigeration system options—brine and direct cooling—enable tailored adaptation to industrial requirements, ensuring compatibility with existing infrastructure. The use of a titanium pipe evaporator coil enhances durability through anti-rust and corrosion-resistance capabilities, which is critical for industrial ice machine longevity. Integration of Siemens PLC controls elevates operational stability and precision, enabling automated monitoring and adjustment to optimize efficiency. This structural design approach reduces maintenance complexities and supports scalable expansion, aligning with diverse industrial project demands.
Performance, Usability, and User Value Delivered by the ice machine supplier
As a high-performance ice machine supplier, Focusun provides equipment capable of faster ice production and greater operational reliability. The ice making machine’s automation system simplifies user operation through precise control and monitoring, minimizing manual intervention and improving consistency. Customizable ice block sizes meet varying application needs, adding value through workflow compatibility and resource optimization. Additionally, the containerized design supports rapid deployment and relocation, reducing downtime and installation costs. Titanium evaporator components enhance service life and reduce corrosion-related failures, translating into lower maintenance costs and higher return on investment for industrial users seeking dependable block ice machine makers.
Use Scenarios
Cold Chain and Aquatic Product Preservation Environment
In seafood processing and cold storage environments, maintaining consistent low temperatures is vital for product integrity. The block ice machine delivers stable, high-quality ice blocks that extend ice longevity and reduce thawing rates, critical for aquatic product preservation during transport and storage. Its customizable block size feature supports compatibility with various packaging and cooling requirements within the cold chain logistics system. The ice machine supplier’s advanced Siemens PLC control enhances process reliability and ensures operational uptime, which aligns with quality standards essential for regulatory compliance. Integrating this block ice machine maker into freezing and cooling workflows improves overall efficiency and supports extended shelf life of refrigerated goods.
Construction Site Cooling and Material Curing Applications
Construction projects requiring temperature control during concrete curing benefit substantially from the large ice blocks produced by this industrial ice machine. The block ice machine maker delivers consistent ice blocks that facilitate cold supply scheduling, ensuring effective thermal regulation of construction materials. Its containerized design allows on-site mobility and easy installation, supporting dynamic operational requirements without disrupting broader workflow systems. The reliable refrigeration systems and corrosion-resistant titanium evaporator coils withstand harsh construction environments, guaranteeing performance continuity. Moreover, the ice block making machine supports compliance with construction industry standards for material curing by providing a controlled and measurable cooling source integrated with project management processes.
- FIB-50B
- FIB-100B
- FIB-150B
- FIB-200B
- FIB-250B
- FIB-300B
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
5Tons Brine System Block Ice Plant
Focusun offers your favorable brine refrigeration block ice machine with the daily capacity from 5 tons to 30 tons. The whole ice producing process is automated combined with Siemens PLC controller, modular design and other unique Focusun German technologies. Test results have shown that Focusun block ice machine is 1.5 times faster than ordinary brine system block ice machine.
| Weight (kg/block) |
Dimension (L*W*H mm) |
Ice Making Time (Hour) |
Batch (times) |
|---|---|---|---|
| 10 | 155×100×750 | 5.5 | 4 |
| 20 | 245×125×750 | 7.5 | 3 |
| 25 | 315×125×750 | 7.5 | 3 |
| 50 | 480×160×750 | 11.5 | 2 |
| 75 | 420×200×1000 | 19.5 | 1 |
| 100 | 500×220×1000 | 22.5 | 1 |
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 5000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 21.14 |
| Installment power | Kw | 25 | |
| Operating power of cold water pump | Kw | 0.55 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 43.3 | |
| Operating power | Kw | 17.99 | |
| Compressor COP/EER | Kw/kw | 2.41 | |
| Horse power | Hp | 25 | |
| Condenser | power | Kw | 2.05 |
| Cooling way | Water cooling | ||
| Working time | Ice making time | h | 7.5 |
| Ice doffing time | h | 0.5 | |
| Dimension | Weight of each block | Kg/block | 50 |
| Size of block ice | (L×W×H)(mm) | 480×160×700 | |
| Size of cooling tower | (L×W×H)(mm) | Ф1380×2170mm | |
| Size of water feeding pipe | 1-1/4" | ||
| Operating weight of cooling tower | Kg | 460 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 5Tons Brine System Block Ice Plant
Focusun adopt Ti pipe as evaporator coil to improve the heat exchange efficiency and to ensure anti-rust, anti-corrosion performance and long life span. The thawing tank is heated by hot gas discharged from the compressor so that it is more energy-saving and suitable for low water temperature area.
Every brine refrigeration block ice machine can be customized according to our clients' requirements.
5 Tons Brine System Block Ice Plant
Focusun brine refrigeration block ice machine ranging from 5 tons to 30 tons is easy to install and operate. The whole ice producing process is in automation combined with Siemens PLC controller, modular design and other unique Focusun German technologies. Our success story in quality product sales around the world is long, backed by amazing customer satisfaction and feedback; Welcome to contact us!
Clients who purchased our 5 Tons Brine system
Testimonials
What our Clients say about this ice Plant around the Globe
We are more than happy with our 30 Tons machine and cooperation with Focusun. The technical and after-sales support is superb. We hope to continue our business cooperations and will recommend Focusun for your ice cooling solutions.
Managing Director: Shri Krishna Devcon Ltd
Focusun was able to customize a 28 Tons block ice machine for our construction project. We are satisfied with their technical knowhow and professionalism
Associated Construction & Investment Co.LLC
Our previous block ice plant gave us a lot of issues until we purchased the 15 Tons block ice machine from Focusun. We have no bad reviews about our product.
Balaji Distilleries Ltd.
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my block ice machine from Focusun. The product quality has exceeded my expectations.
Managing Director: Mr James Darko (Ghana)
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
10Tons Brine System Block Ice Plant
Focusun offers your favorable brine refrigeration block ice machine with the daily capacity from 5 tons to 30 tons. The whole ice producing process is automated combined with Siemens PLC controller, modular design and other unique Focusun German technologies. Test results have shown that Focusun block ice machine is 1.5 times faster than ordinary brine system block ice machine.
| Weight (kg/block) |
Dimension (L*W*H mm) |
Ice Making Time (Hour) |
Batch (times) |
|---|---|---|---|
| 10 | 155×100×750 | 5.5 | 4 |
| 20 | 245×125×750 | 7.5 | 3 |
| 25 | 315×125×750 | 7.5 | 3 |
| 50 | 480×160×750 | 11.5 | 2 |
| 75 | 420×200×1000 | 19.5 | 1 |
| 100 | 500×220×1000 | 22.5 | 1 |
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 10000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 40.69 |
| Installment power | Kw | 50 | |
| Operating power of cold water pump | Kw | 2.2 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 86.6 | |
| Operating power | Kw | 35.98 | |
| Compressor COP/EER | Kw/kw | 2.41 | |
| Horse power | Hp | 25×2 | |
| Condenser | power | Kw | 3.3 |
| Cooling way | Water cooling | ||
| Working time | Ice making time | h | 7.5 |
| Ice doffing time | h | 0.5 | |
| Dimension | Weight of each block | Kg/block | 50 |
| Size of block ice | (L×W×H)(mm) | 480×160×700 | |
| Size of cooling tower | (L×W×H)(mm) | Ф2000×2410mm | |
| Size of water feeding pipe | 1-1/4" | ||
| Operating weight of cooling tower | Kg | 670 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 5Tons Brine System Block Ice Plant
Focusun adopt Ti pipe as evaporator coil to improve the heat exchange efficiency and to ensure anti-rust, anti-corrosion performance and long life span. The thawing tank is heated by hot gas discharged from the compressor so that it is more energy-saving and suitable for low water temperature area.
Every brine refrigeration block ice machine can be customized according to our clients' requirements.
10 Tons Brine System Block Ice Plant
Focusun brine refrigeration block ice machine ranging from 5 tons to 30 tons is easy to install and operate. The whole ice producing process is in automation combined with Siemens PLC controller, modular design and other unique Focusun German technologies. Our success story in quality product sales around the world is long, backed by amazing customer satisfaction and feedback; Welcome to contact us!
Clients who purchased our 10 Tons Brine system
Testimonials
What our Clients say about this ice Plant around the Globe
We are more than happy with our 30 Tons machine and cooperation with Focusun. The technical and after-sales support is superb. We hope to continue our business cooperations and will recommend Focusun for your ice cooling solutions.
Managing Director: Shri Krishna Devcon Ltd
Focusun was able to customize a 28 Tons block ice machine for our construction project. We are satisfied with their technical knowhow and professionalism
Associated Construction & Investment Co.LLC
Our previous block ice plant gave us a lot of issues until we purchased the 15 Tons block ice machine from Focusun. We have no bad reviews about our product.
Balaji Distilleries Ltd.
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my block ice machine from Focusun. The product quality has exceeded my expectations.
Managing Director: Mr James Darko (Ghana)
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
15Tons Brine System Block Ice Plant
Focusun offers your favorable brine refrigeration block ice machine with the daily capacity from 5 tons to 30 tons. The whole ice producing process is automated combined with Siemens PLC controller, modular design and other unique Focusun German technologies. Test results have shown that Focusun block ice machine is 1.5 times faster than ordinary brine system block ice machine.
| Weight (kg/block) |
Dimension (L*W*H mm) |
Ice Making Time (Hour) |
Batch (times) |
|---|---|---|---|
| 10 | 155×100×750 | 5.5 | 4 |
| 20 | 245×125×750 | 7.5 | 3 |
| 25 | 315×125×750 | 7.5 | 3 |
| 50 | 480×160×750 | 11.5 | 2 |
| 75 | 420×200×1000 | 19.5 | 1 |
| 100 | 500×220×1000 | 22.5 | 1 |
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 15000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 60.6 |
| Installment power | Kw | 75 | |
| Operating power of cold water pump | Kw | 5.5 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 118.2 | |
| Operating power | Kw | 51.4 | |
| Compressor COP/EER | Kw/kw | 2.3 | |
| Horse power | Hp | 40×2 | |
| Condenser | power | Kw | 7 |
| Cooling way | Water cooling | ||
| Working time | Ice making time | h | 7.5 |
| Ice doffing time | h | 0.5 | |
| Dimension | Weight of each block | Kg/block | 50 |
| Size of block ice | (L×W×H)(mm) | 480×160×700 | |
| Size of cooling tower | (L×W×H)(mm) | Ф2175×2565mm | |
| Size of water feeding pipe | 1-1/4" | ||
| Operating weight of cooling tower | Kg | 1120 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 5Tons Brine System Block Ice Plant
Focusun adopt Ti pipe as evaporator coil to improve the heat exchange efficiency and to ensure anti-rust, anti-corrosion performance and long life span. The thawing tank is heated by hot gas discharged from the compressor so that it is more energy-saving and suitable for low water temperature area.
Every brine refrigeration block ice machine can be customized according to our clients' requirements.
15 Tons Brine System Block Ice Plant
Focusun brine refrigeration block ice machine ranging from 5 tons to 30 tons is easy to install and operate. The whole ice producing process is in automation combined with Siemens PLC controller, modular design and other unique Focusun German technologies. Our success story in quality product sales around the world is long, backed by amazing customer satisfaction and feedback; Welcome to contact us!
Clients who purchased our 15 Tons Brine system
Testimonials
What our Clients say about this ice Plant around the Globe
We are more than happy with our 30 Tons machine and cooperation with Focusun. The technical and after-sales support is superb. We hope to continue our business cooperations and will recommend Focusun for your ice cooling solutions.
Managing Director: Shri Krishna Devcon Ltd
Focusun was able to customize a 28 Tons block ice machine for our construction project. We are satisfied with their technical knowhow and professionalism
Associated Construction & Investment Co.LLC
Our previous block ice plant gave us a lot of issues until we purchased the 15 Tons block ice machine from Focusun. We have no bad reviews about our product.
Balaji Distilleries Ltd.
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my block ice machine from Focusun. The product quality has exceeded my expectations.
Managing Director: Mr James Darko (Ghana)
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
20Tons Brine System Block Ice Plant
Focusun offers your favorable brine refrigeration block ice machine with the daily capacity from 5 tons to 30 tons. The whole ice producing process is automated combined with Siemens PLC controller, modular design and other unique Focusun German technologies. Test results have shown that Focusun block ice machine is 1.5 times faster than ordinary brine system block ice machine.
| Weight (kg/block) |
Dimension (L*W*H mm) |
Ice Making Time (Hour) |
Batch (times) |
|---|---|---|---|
| 10 | 155×100×750 | 5.5 | 4 |
| 20 | 245×125×750 | 7.5 | 3 |
| 25 | 315×125×750 | 7.5 | 3 |
| 50 | 480×160×750 | 11.5 | 2 |
| 75 | 420×200×1000 | 19.5 | 1 |
| 100 | 500×220×1000 | 22.5 | 1 |
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 20000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 88.5 |
| Installment power | Kw | 105 | |
| Operating power of cold water pump | Kw | 5.5 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 155.7 | |
| Operating power | Kw | 77.1 | |
| Compressor COP/EER | Kw/kw | 2.3 | |
| Horse power | Hp | 40×3 | |
| Condenser | power | Kw | 7.7 |
| Cooling way | Water cooling | ||
| Working time | Ice making time | h | 7.5 |
| Ice doffing time | h | 0.5 | |
| Dimension | Weight of each block | Kg/block | 50 |
| Size of block ice | (L×W×H)(mm) | 480×160×700 | |
| Size of cooling tower | (L×W×H)(mm) | Ф2650×2645mm | |
| Size of water feeding pipe | 1-1/4" | ||
| Operating weight of cooling tower | Kg | 1300 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 5Tons Brine System Block Ice Plant
Focusun adopt Ti pipe as evaporator coil to improve the heat exchange efficiency and to ensure anti-rust, anti-corrosion performance and long life span. The thawing tank is heated by hot gas discharged from the compressor so that it is more energy-saving and suitable for low water temperature area.
Every brine refrigeration block ice machine can be customized according to our clients' requirements.
20 Tons Brine System Block Ice Plant
Focusun brine refrigeration block ice machine ranging from 5 tons to 30 tons is easy to install and operate. The whole ice producing process is in automation combined with Siemens PLC controller, modular design and other unique Focusun German technologies. Our success story in quality product sales around the world is long, backed by amazing customer satisfaction and feedback; Welcome to contact us!
Clients who purchased our 20 Tons Brine system
Testimonials
What our Clients say about this ice Plant around the Globe
We are more than happy with our 30 Tons machine and cooperation with Focusun. The technical and after-sales support is superb. We hope to continue our business cooperations and will recommend Focusun for your ice cooling solutions.
Managing Director: Shri Krishna Devcon Ltd
Focusun was able to customize a 28 Tons block ice machine for our construction project. We are satisfied with their technical knowhow and professionalism
Associated Construction & Investment Co.LLC
Our previous block ice plant gave us a lot of issues until we purchased the 15 Tons block ice machine from Focusun. We have no bad reviews about our product.
Balaji Distilleries Ltd.
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my block ice machine from Focusun. The product quality has exceeded my expectations.
Managing Director: Mr James Darko (Ghana)
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
25Tons Brine System Block Ice Plant
Focusun offers your favorable brine refrigeration block ice machine with the daily capacity from 5 tons to 30 tons. The whole ice producing process is automated combined with Siemens PLC controller, modular design and other unique Focusun German technologies. Test results have shown that Focusun block ice machine is 1.5 times faster than ordinary brine system block ice machine.
| Weight (kg/block) |
Dimension (L*W*H mm) |
Ice Making Time (Hour) |
Batch (times) |
|---|---|---|---|
| 10 | 155×100×750 | 5.5 | 4 |
| 20 | 245×125×750 | 7.5 | 3 |
| 25 | 315×125×750 | 7.5 | 3 |
| 50 | 480×160×750 | 11.5 | 2 |
| 75 | 420×200×1000 | 19.5 | 1 |
| 100 | 500×220×1000 | 22.5 | 1 |
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 25000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 98.8 |
| Installment power | Kw | 120 | |
| Operating power of cold water pump | Kw | 7.5 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 199.2 | |
| Operating power | Kw | 83.6 | |
| Compressor COP/EER | Kw/kw | 2.38 | |
| Horse power | Hp | 30×4 | |
| Condenser | power | Kw | 9.7 |
| Cooling way | Water cooling | ||
| Working time | Ice making time | h | 7.5 |
| Ice doffing time | h | 0.5 | |
| Dimension | Weight of each block | Kg/block | 50 |
| Size of block ice | (L×W×H)(mm) | 480×160×700 | |
| Size of cooling tower | (L×W×H)(mm) | Ф3050×2780mm | |
| Size of water feeding pipe | 1-1/4" | ||
| Operating weight of cooling tower | Kg | 1630 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 5Tons Brine System Block Ice Plant
Focusun adopt Ti pipe as evaporator coil to improve the heat exchange efficiency and to ensure anti-rust, anti-corrosion performance and long life span. The thawing tank is heated by hot gas discharged from the compressor so that it is more energy-saving and suitable for low water temperature area.
Every brine refrigeration block ice machine can be customized according to our clients' requirements.
25 Tons Brine System Block Ice Plant
Focusun brine refrigeration block ice machine ranging from 5 tons to 30 tons is easy to install and operate. The whole ice producing process is in automation combined with Siemens PLC controller, modular design and other unique Focusun German technologies. Our success story in quality product sales around the world is long, backed by amazing customer satisfaction and feedback; Welcome to contact us!
Clients who purchased our 25 Tons Brine system
Testimonials
What our Clients say about this ice Plant around the Globe
We are more than happy with our 30 Tons machine and cooperation with Focusun. The technical and after-sales support is superb. We hope to continue our business cooperations and will recommend Focusun for your ice cooling solutions.
Managing Director: Shri Krishna Devcon Ltd
Focusun was able to customize a 28 Tons block ice machine for our construction project. We are satisfied with their technical knowhow and professionalism
Associated Construction & Investment Co.LLC
Our previous block ice plant gave us a lot of issues until we purchased the 15 Tons block ice machine from Focusun. We have no bad reviews about our product.
Balaji Distilleries Ltd.
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my block ice machine from Focusun. The product quality has exceeded my expectations.
Managing Director: Mr James Darko (Ghana)
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
30Tons Brine System Block Ice Plant
Focusun offers your favorable brine refrigeration block ice machine with the daily capacity from 5 tons to 30 tons. The whole ice producing process is automated combined with Siemens PLC controller, modular design and other unique Focusun German technologies. Test results have shown that Focusun block ice machine is 1.5 times faster than ordinary brine system block ice machine.
| Weight (kg/block) |
Dimension (L*W*H mm) |
Ice Making Time (Hour) |
Batch (times) |
|---|---|---|---|
| 10 | 155×100×750 | 5.5 | 4 |
| 20 | 245×125×750 | 7.5 | 3 |
| 25 | 315×125×750 | 7.5 | 3 |
| 50 | 480×160×750 | 11.5 | 2 |
| 75 | 420×200×1000 | 19.5 | 1 |
| 100 | 500×220×1000 | 22.5 | 1 |
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 30000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 120.3 |
| Installment power | Kw | 150 | |
| Operating power of cold water pump | Kw | 7.5 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 236.4 | |
| Operating power | Kw | 101.6 | |
| Compressor COP/EER | Kw/kw | 2.3 | |
| Horse power | Hp | 40×4 | |
| Condenser | power | Kw | 11.2 |
| Cooling way | Water cooling | ||
| Working time | Ice making time | h | 7.5 |
| Ice doffing time | h | 0.5 | |
| Dimension | Weight of each block | Kg/block | 50 |
| Size of block ice | (L×W×H)(mm) | 480×160×700 | |
| Size of cooling tower | (L×W×H)(mm) | Ф3300×2785mm | |
| Size of water feeding pipe | 1-1/4" | ||
| Operating weight of cooling tower | Kg | 2730 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 5Tons Brine System Block Ice Plant
Focusun adopt Ti pipe as evaporator coil to improve the heat exchange efficiency and to ensure anti-rust, anti-corrosion performance and long life span. The thawing tank is heated by hot gas discharged from the compressor so that it is more energy-saving and suitable for low water temperature area.
Every brine refrigeration block ice machine can be customized according to our clients' requirements.
30 Tons Brine System Block Ice Plant
Focusun brine refrigeration block ice machine ranging from 5 tons to 30 tons is easy to install and operate. The whole ice producing process is in automation combined with Siemens PLC controller, modular design and other unique Focusun German technologies. Our success story in quality product sales around the world is long, backed by amazing customer satisfaction and feedback; Welcome to contact us!
Clients who purchased our 30 Tons Brine system
Testimonials
What our Clients say about this ice Plant around the Globe
We are more than happy with our 30 Tons machine and cooperation with Focusun. The technical and after-sales support is superb. We hope to continue our business cooperations and will recommend Focusun for your ice cooling solutions.
Managing Director: Shri Krishna Devcon Ltd
Focusun was able to customize a 28 Tons block ice machine for our construction project. We are satisfied with their technical knowhow and professionalism
Associated Construction & Investment Co.LLC
Our previous block ice plant gave us a lot of issues until we purchased the 15 Tons block ice machine from Focusun. We have no bad reviews about our product.
Balaji Distilleries Ltd.
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my block ice machine from Focusun. The product quality has exceeded my expectations.
Managing Director: Mr James Darko (Ghana)
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- FIB-05D
- FIB-10D
- FIB-15D
- FIB-20D
- FIB-25D
- FIB-30D
- FIB-35D
- FIB-50D
- FIB-100D
- FIB-150D
- FIB-200D
- FIB-250D
- FIB-300D
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
0.5 Ton Direct System Block Ice Plant
Compared with traditional brine technology ice block machines, Focusun Direct refrigeration block ice machines adopt special alloy aluminum to ensure outstanding durability, and world renowned Bock/Bitzer compressors to guarantee enough power for reliable ice production. The daily capacity of Focusun direct refrigeration block ice machines can be customized in a range from 0.5 ton to 30 tons.
| Weight (kg/block) |
Dimension (L*W*H mm) |
Ice Making Time (Hour) |
Batch (times) |
|---|---|---|---|
| 10 | 155×100×750 | 5.5 | 4 |
| 20 | 245×125×750 | 7.5 | 3 |
| 25 | 315×125×750 | 7.5 | 3 |
| 50 | 480×160×750 | 11.5 | 2 |
| 75 | 420×200×1000 | 19.5 | 1 |
| 100 | 500×220×1000 | 22.5 | 1 |
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 540 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 2.055 |
| Installment power | Kw | 2.5 | |
| Operating power of cold water pump | Kw | 0.09 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 3.77 | |
| Operating power | Kw | 1.98 | |
| Compressor COP/EER | Kw/kw | 1.91 | |
| Horse power | Hp | 3 | |
| Condenser | Fan power | Kw | 0.35 |
| Cooling way | Air cooling | ||
| Working time | Ice making time | h | 7.5 |
| Ice falling off time | h | 0.5 | |
| Dimension | Weight of block ice | Kg/block | 15 |
| Size of ice maker | (L×W×H)(mm) | 185×125×700 | |
| Size of ice maker | (L×W×H)(mm) | 1500×800×1800 | |
| Size of water feeding pipe | 3/4" | ||
| Operating weight of block ice maker | Kg | 560 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 0.5 Ton Direct System Block Ice Plant
The evaporator of direct system block ice machine adopts special aluminum alloy plate which is more durable and meets food hygiene requirements. Ice thawing and ice doffing are fully-automatic, therefore no manual work is needed. The ice is doffed by batch and the whole ice-doffing process only takes 25 minutes. The efficiency of direct system block ice maker guarantees cost-saving and time-saving.
Every direct refrigeration block ice machine can be customized according to our clients' requirements.
Photos of the 0.5 Ton Direct system Block Ice Plant for your reference
All Focusun Direct system block ice plants adopt modular and integrated design, which ensures it is easy to transport, move and install on the spot. All ice machines can be installed in 20ft or 40ft container with other relevant equipments. Focusun offers transparent, milky white ice and also colorful block ice.
0.5 Ton Direct System Block Ice Plant
Focusun direct system block ice machine adopts edge-leading refrigeration industry technology. After direct heat exchange between refrigerant and water, in 5 to 8 hours, water is frozen out into ice. By that time, PLC controls the machine automatically into ice doffing process. Direct system utilizes hot Freon to defrost ice; therefore, the defrosting process is fast.
Clients who purchased our 0.5 Ton Direct refrigeration system block ice maker
Testimonials
What our Clients say about this ice Plant around the Globe
We are more than happy with our 30 Tons machine and cooperation with Focusun. The technical and after-sales support is superb. We hope to continue our business cooperation and will recommend Focusun for your ice cooling solutions.
Managing Director: Shri Krishna Devcon Ltd
Focusun was able to customize a 28 Tons block ice machine for our construction project. We are satisfied with their technical knowhow and professionalism
Associated Construction & Investment Co.LLC
Our previous block ice plant gave us a lot of issues until we purchased the 15 Tons block ice machine from Focusun. We have no bad reviews about our product.
Balaji Distilleries Ltd.
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my block ice machine from Focusun. The product quality has exceeded my expectations.
Managing Director: Mr James Darko (Ghana)
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
1 Ton Direct System Block Ice Plant
Compared with traditional brine technology ice block machines, Focusun Direct refrigeration block ice machines adopt special alloy aluminum to ensure outstanding durability, and world renowned Bock/Bitzer compressors to guarantee enough power for reliable ice production. The daily capacity of Focusun direct refrigeration block ice machines can be customized in a range from 0.5 ton to 30 tons.
| Weight (kg/block) |
Dimension (L*W*H mm) |
Ice Making Time (Hour) |
Batch (times) |
|---|---|---|---|
| 10 | 155×100×750 | 5.5 | 4 |
| 20 | 245×125×750 | 7.5 | 3 |
| 25 | 315×125×750 | 7.5 | 3 |
| 50 | 480×160×750 | 11.5 | 2 |
| 75 | 420×200×1000 | 19.5 | 1 |
| 100 | 500×220×1000 | 22.5 | 1 |
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 1080 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 4.85 |
| Installment power | Kw | 6 | |
| Operating power of cold water pump | Kw | 0.12 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 7.86 | |
| Operating power | Kw | 3.83 | |
| Compressor COP/EER | Kw/kw | 2.05 | |
| Horse power | Hp | 6 | |
| Condenser | Fan power | Kw | 0.9 |
| Cooling way | Air cooling | ||
| Working time | Ice making time | h | 7.5 |
| Ice falling off time | h | 0.5 | |
| Dimension | Weight of each block | Kg/block | 20 |
| Size of block ice | (L×W×H)(mm) | 245×125×700 | |
| Size of ice maker | (L×W×H)(mm) | 1800×1200×2000 | |
| Size of water feeding pipe | 3/4" | ||
| Operating weight of block ice maker | Kg | 960 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 0.5 Ton Direct System Block Ice Plant
The evaporator of direct system block ice machine adopts special aluminum alloy plate which is more durable and meets food hygiene requirements. Ice thawing and ice doffing are fully-automatic, therefore no manual work is needed. The ice is doffed by batch and the whole ice-doffing process only takes 25 minutes. The efficiency of direct system block ice maker guarantees cost-saving and time-saving.
Every direct refrigeration block ice machine can be customized according to our clients' requirements.
Photos of the 1 Ton Direct system Block Ice Plant for your reference
All Focusun Direct system block ice plants adopt modular and integrated design, which ensures it is easy to transport, move and install on the spot. All ice machines can be installed in 20ft or 40ft container with other relevant equipments. Focusun offers transparent, milky white ice and also colorful block ice.
1 Ton Direct System Block Ice Plant
Focusun direct system block ice machine adopts edge-leading refrigeration industry technology. After direct heat exchange between refrigerant and water, in 5 to 8 hours, water is frozen out into ice. By that time, PLC controls the machine automatically into ice doffing process. Direct system utilizes hot Freon to defrost ice; therefore, the defrosting process is fast.
Clients who purchased our 1 Ton Direct refrigeration system block ice maker
Testimonials
What our Clients say about this ice Plant around the Globe
We are more than happy with our 30 Tons machine and cooperation with Focusun. The technical and after-sales support is superb. We hope to continue our business cooperation and will recommend Focusun for your ice cooling solutions.
Managing Director: Shri Krishna Devcon Ltd
Focusun was able to customize a 28 Tons block ice machine for our construction project. We are satisfied with their technical knowhow and professionalism
Associated Construction & Investment Co.LLC
Our previous block ice plant gave us a lot of issues until we purchased the 15 Tons block ice machine from Focusun. We have no bad reviews about our product.
Balaji Distilleries Ltd.
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my block ice machine from Focusun. The product quality has exceeded my expectations.
Managing Director: Mr James Darko (Ghana)
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
1.5 Ton Direct System Block Ice Plant
Compared with traditional brine technology ice block machines, Focusun Direct refrigeration block ice machines adopt special alloy aluminum to ensure outstanding durability, and world renowned Bock/Bitzer compressors to guarantee enough power for reliable ice production. The daily capacity of Focusun direct refrigeration block ice machines can be customized in a range from 0.5 ton to 30 tons.
| Weight (kg/block) |
Dimension (L*W*H mm) |
Ice Making Time (Hour) |
Batch (times) |
|---|---|---|---|
| 10 | 155×100×750 | 5.5 | 4 |
| 20 | 245×125×750 | 7.5 | 3 |
| 25 | 315×125×750 | 7.5 | 3 |
| 50 | 480×160×750 | 11.5 | 2 |
| 75 | 420×200×1000 | 19.5 | 1 |
| 100 | 500×220×1000 | 22.5 | 1 |
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 1500 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 6.94 |
| Installment power | Kw | 8.5 | |
| Operating power of cold water pump | Kw | 0.12 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 11.62 | |
| Operating power | Kw | 5.72 | |
| Compressor COP/EER | Kw/kw | 2.03 | |
| Horse power | Hp | 9 | |
| Condenser | Fan power | Kw | 1.1 |
| Cooling way | Air cooling | ||
| Working time | Ice making time | h | 7.5 |
| Ice falling off time | h | 0.5 | |
| Dimension | Weight of each block | Kg/block | 20 |
| Size of block ice | (L×W×H)(mm) | 245×125×700 | |
| Size of ice maker | (L×W×H)(mm) | 2800×1200×2000 | |
| Size of water feeding pipe | 3/4" | ||
| Operating weight of block ice maker | Kg | 1260 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 0.5 Ton Direct System Block Ice Plant
The evaporator of direct system block ice machine adopts special aluminum alloy plate which is more durable and meets food hygiene requirements. Ice thawing and ice doffing are fully-automatic, therefore no manual work is needed. The ice is doffed by batch and the whole ice-doffing process only takes 25 minutes. The efficiency of direct system block ice maker guarantees cost-saving and time-saving.
Every direct refrigeration block ice machine can be customized according to our clients' requirements.
Photos of the 1.5 Ton Direct system Block Ice Plant for your reference
All Focusun Direct system block ice plants adopt modular and integrated design, which ensures it is easy to transport, move and install on the spot. All ice machines can be installed in 20ft or 40ft container with other relevant equipments. Focusun offers transparent, milky white ice and also colorful block ice.
1.5 Ton Direct System Block Ice Plant
Focusun direct system block ice machine adopts edge-leading refrigeration industry technology. After direct heat exchange between refrigerant and water, in 5 to 8 hours, water is frozen out into ice. By that time, PLC controls the machine automatically into ice doffing process. Direct system utilizes hot Freon to defrost ice; therefore, the defrosting process is fast.
Clients who purchased our 1.5 Ton Direct refrigeration system block ice maker
Testimonials
What our Clients say about this ice Plant around the Globe
We are more than happy with our 30 Tons machine and cooperation with Focusun. The technical and after-sales support is superb. We hope to continue our business cooperation and will recommend Focusun for your ice cooling solutions.
Managing Director: Shri Krishna Devcon Ltd
Focusun was able to customize a 28 Tons block ice machine for our construction project. We are satisfied with their technical knowhow and professionalism
Associated Construction & Investment Co.LLC
Our previous block ice plant gave us a lot of issues until we purchased the 15 Tons block ice machine from Focusun. We have no bad reviews about our product.
Balaji Distilleries Ltd.
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my block ice machine from Focusun. The product quality has exceeded my expectations.
Managing Director: Mr James Darko (Ghana)
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
2 Ton Direct System Block Ice Plant
Compared with traditional brine technology ice block machines, Focusun Direct refrigeration block ice machines adopt special alloy aluminum to ensure outstanding durability, and world renowned Bock/Bitzer compressors to guarantee enough power for reliable ice production. The daily capacity of Focusun direct refrigeration block ice machines can be customized in a range from 0.5 ton to 30 tons.
| Weight (kg/block) |
Dimension (L*W*H mm) |
Ice Making Time (Hour) |
Batch (times) |
|---|---|---|---|
| 10 | 155×100×750 | 5.5 | 4 |
| 20 | 245×125×750 | 7.5 | 3 |
| 25 | 315×125×750 | 7.5 | 3 |
| 50 | 480×160×750 | 11.5 | 2 |
| 75 | 420×200×1000 | 19.5 | 1 |
| 100 | 500×220×1000 | 22.5 | 1 |
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 2160 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 8.16 |
| Installment power | Kw | 10 | |
| Operating power of cold water pump | Kw | 0.12 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 15.63 | |
| Operating power | Kw | 6.94 | |
| Compressor COP/EER | Kw/kw | 2.25 | |
| Horse power | Hp | 12 | |
| Condenser | Fan power | Kw | 1.1 |
| Cooling way | Air cooling | ||
| Working time | Ice making time | h | 7.5 |
| Ice falling off time | h | 0.5 | |
| Dimension | Weight of each block | Kg/block | 20 |
| Size of block ice | (L×W×H)(mm) | 245×125×700 | |
| Size of ice maker | (L×W×H)(mm) | 2800×1400×2000 | |
| Size of water feeding pipe | 3/4" | ||
| Operating weight of block ice maker | Kg | 1460 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 0.5 Ton Direct System Block Ice Plant
The evaporator of direct system block ice machine adopts special aluminum alloy plate which is more durable and meets food hygiene requirements. Ice thawing and ice doffing are fully-automatic, therefore no manual work is needed. The ice is doffed by batch and the whole ice-doffing process only takes 25 minutes. The efficiency of direct system block ice maker guarantees cost-saving and time-saving.
Every direct refrigeration block ice machine can be customized according to our clients' requirements.
Photos of the 0.5 Ton Direct system Block Ice Plant for your reference
All Focusun Direct system block ice plants adopt modular and integrated design, which ensures it is easy to transport, move and install on the spot. All ice machines can be installed in 20ft or 40ft container with other relevant equipments. Focusun offers transparent, milky white ice and also colorful block ice.
2 Ton Direct System Block Ice Plant
Focusun direct system block ice machine adopts edge-leading refrigeration industry technology. After direct heat exchange between refrigerant and water, in 5 to 8 hours, water is frozen out into ice. By that time, PLC controls the machine automatically into ice doffing process. Direct system utilizes hot Freon to defrost ice; therefore, the defrosting process is fast.
Clients who purchased our 2.5 Ton Direct refrigeration system block ice maker
Testimonials
What our Clients say about this ice Plant around the Globe
We are more than happy with our 30 Tons machine and cooperation with Focusun. The technical and after-sales support is superb. We hope to continue our business cooperation and will recommend Focusun for your ice cooling solutions.
Managing Director: Shri Krishna Devcon Ltd
Focusun was able to customize a 28 Tons block ice machine for our construction project. We are satisfied with their technical knowhow and professionalism
Associated Construction & Investment Co.LLC
Our previous block ice plant gave us a lot of issues until we purchased the 15 Tons block ice machine from Focusun. We have no bad reviews about our product.
Balaji Distilleries Ltd.
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my block ice machine from Focusun. The product quality has exceeded my expectations.
Managing Director: Mr James Darko (Ghana)
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
2.5 Ton Direct System Block Ice Plant
Compared with traditional brine technology ice block machines, Focusun Direct refrigeration block ice machines adopt special alloy aluminum to ensure outstanding durability, and world renowned Bock/Bitzer compressors to guarantee enough power for reliable ice production. The daily capacity of Focusun direct refrigeration block ice machines can be customized in a range from 0.5 ton to 30 tons.
| Weight (kg/block) |
Dimension (L*W*H mm) |
Ice Making Time (Hour) |
Batch (times) |
|---|---|---|---|
| 10 | 155×100×750 | 5.5 | 4 |
| 20 | 245×125×750 | 7.5 | 3 |
| 25 | 315×125×750 | 7.5 | 3 |
| 50 | 480×160×750 | 11.5 | 2 |
| 75 | 420×200×1000 | 19.5 | 1 |
| 100 | 500×220×1000 | 22.5 | 1 |
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 2640 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 9.51 |
| Installment power | Kw | 12 | |
| Operating power of cold water pump | Kw | 0.12 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 18.54 | |
| Operating power | Kw | 7.79 | |
| Compressor COP/EER | Kw/kw | 2.32 | |
| Horse power | Hp | 15 | |
| Condenser | Fan power | Kw | 1.6 |
| Cooling way | Air cooling | ||
| Working time | Ice making time | h | 7.5 |
| Ice falling off time | h | 0.5 | |
| Dimension | Weight of each block | Kg/block | 20 |
| Size of block ice | (L×W×H)(mm) | 245×125×700 | |
| Size of ice maker | (L×W×H)(mm) | 3200×1400×2000 | |
| Size of water feeding pipe | 3/4" | ||
| Operating weight of block ice maker | Kg | 1660 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 0.5 Ton Direct System Block Ice Plant
The evaporator of direct system block ice machine adopts special aluminum alloy plate which is more durable and meets food hygiene requirements. Ice thawing and ice doffing are fully-automatic, therefore no manual work is needed. The ice is doffed by batch and the whole ice-doffing process only takes 25 minutes. The efficiency of direct system block ice maker guarantees cost-saving and time-saving.
Every direct refrigeration block ice machine can be customized according to our clients' requirements.
Photos of the 2.5 Ton Direct system Block Ice Plant for your reference
All Focusun Direct system block ice plants adopt modular and integrated design, which ensures it is easy to transport, move and install on the spot. All ice machines can be installed in 20ft or 40ft container with other relevant equipments. Focusun offers transparent, milky white ice and also colorful block ice.
2.5 Ton Direct System Block Ice Plant
Focusun direct system block ice machine adopts edge-leading refrigeration industry technology. After direct heat exchange between refrigerant and water, in 5 to 8 hours, water is frozen out into ice. By that time, PLC controls the machine automatically into ice doffing process. Direct system utilizes hot Freon to defrost ice; therefore, the defrosting process is fast.
Clients who purchased our 2.5 Ton Direct refrigeration system block ice maker
Testimonials
What our Clients say about this ice Plant around the Globe
We are more than happy with our 30 Tons machine and cooperation with Focusun. The technical and after-sales support is superb. We hope to continue our business cooperation and will recommend Focusun for your ice cooling solutions.
Managing Director: Shri Krishna Devcon Ltd
Focusun was able to customize a 28 Tons block ice machine for our construction project. We are satisfied with their technical knowhow and professionalism
Associated Construction & Investment Co.LLC
Our previous block ice plant gave us a lot of issues until we purchased the 15 Tons block ice machine from Focusun. We have no bad reviews about our product.
Balaji Distilleries Ltd.
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my block ice machine from Focusun. The product quality has exceeded my expectations.
Managing Director: Mr James Darko (Ghana)
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
3 Ton Direct System Block Ice Plant
Compared with traditional brine technology ice block machines, Focusun Direct refrigeration block ice machines adopt special alloy aluminum to ensure outstanding durability, and world renowned Bock/Bitzer compressors to guarantee enough power for reliable ice production. The daily capacity of Focusun direct refrigeration block ice machines can be customized in a range from 0.5 ton to 30 tons.
| Weight (kg/block) |
Dimension (L*W*H mm) |
Ice Making Time (Hour) |
Batch (times) |
|---|---|---|---|
| 10 | 155×100×750 | 5.5 | 4 |
| 20 | 245×125×750 | 7.5 | 3 |
| 25 | 315×125×750 | 7.5 | 3 |
| 50 | 480×160×750 | 11.5 | 2 |
| 75 | 420×200×1000 | 19.5 | 1 |
| 100 | 500×220×1000 | 22.5 | 1 |
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 3000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 11.52 |
| Installment power | Kw | 14 | |
| Operating power of cold water pump | Kw | 0.35 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 21.4 | |
| Operating power | Kw | 9.52 | |
| Compressor COP/EER | Kw/kw | 2.25 | |
| Horse power | Hp | 20 | |
| Condenser | Fan power | Kw | 1.65 |
| Cooling way | Air cooling | ||
| Working time | Ice making time | h | 7.5 |
| Ice falling off time | h | 0.5 | |
| Dimension | Weight of each block | Kg/block | 25 |
| Size of block ice | (L×W×H)(mm) | 315×125×700 | |
| Size of ice maker | (L×W×H)(mm) | 3600×1400×2200 | |
| Size of water feeding pipe | 3/4" | ||
| Operating weight of block ice maker | Kg | 2180 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 0.5 Ton Direct System Block Ice Plant
The evaporator of direct system block ice machine adopts special aluminum alloy plate which is more durable and meets food hygiene requirements. Ice thawing and ice doffing are fully-automatic, therefore no manual work is needed. The ice is doffed by batch and the whole ice-doffing process only takes 25 minutes. The efficiency of direct system block ice maker guarantees cost-saving and time-saving.
Every direct refrigeration block ice machine can be customized according to our clients' requirements.
Photos of the 3 Ton Direct system Block Ice Plant for your reference
All Focusun Direct system block ice plants adopt modular and integrated design, which ensures it is easy to transport, move and install on the spot. All ice machines can be installed in 20ft or 40ft container with other relevant equipments. Focusun offers transparent, milky white ice and also colorful block ice.
3 Ton Direct System Block Ice Plant
Focusun direct system block ice machine adopts edge-leading refrigeration industry technology. After direct heat exchange between refrigerant and water, in 5 to 8 hours, water is frozen out into ice. By that time, PLC controls the machine automatically into ice doffing process. Direct system utilizes hot Freon to defrost ice; therefore, the defrosting process is fast.
Clients who purchased our 3 Ton Direct refrigeration system block ice maker
Testimonials
What our Clients say about this ice Plant around the Globe
We are more than happy with our 30 Tons machine and cooperation with Focusun. The technical and after-sales support is superb. We hope to continue our business cooperation and will recommend Focusun for your ice cooling solutions.
Managing Director: Shri Krishna Devcon Ltd
Focusun was able to customize a 28 Tons block ice machine for our construction project. We are satisfied with their technical knowhow and professionalism
Associated Construction & Investment Co.LLC
Our previous block ice plant gave us a lot of issues until we purchased the 15 Tons block ice machine from Focusun. We have no bad reviews about our product.
Balaji Distilleries Ltd.
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my block ice machine from Focusun. The product quality has exceeded my expectations.
Managing Director: Mr James Darko (Ghana)
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
3.5 Ton Direct System Block Ice Plant
Compared with traditional brine technology ice block machines, Focusun Direct refrigeration block ice machines adopt special alloy aluminum to ensure outstanding durability, and world renowned Bock/Bitzer compressors to guarantee enough power for reliable ice production. The daily capacity of Focusun direct refrigeration block ice machines can be customized in a range from 0.5 ton to 30 tons.
| Weight (kg/block) |
Dimension (L*W*H mm) |
Ice Making Time (Hour) |
Batch (times) |
|---|---|---|---|
| 10 | 155×100×750 | 5.5 | 4 |
| 20 | 245×125×750 | 7.5 | 3 |
| 25 | 315×125×750 | 7.5 | 3 |
| 50 | 480×160×750 | 11.5 | 2 |
| 75 | 420×200×1000 | 19.5 | 1 |
| 100 | 500×220×1000 | 22.5 | 1 |
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 3750 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 14.85 |
| Installment power | Kw | 18 | |
| Operating power of cold water pump | Kw | 0.35 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 27.6 | |
| Operating power | Kw | 12.1 | |
| Compressor COP/EER | Kw/kw | 2.28 | |
| Horse power | Hp | 25 | |
| Condenser | Fan power | Kw | 2.4 |
| Cooling way | Air cooling | ||
| Working time | Ice making time | h | 7.5 |
| Ice falling off time | h | 0.5 | |
| Dimension | Weight of each block | Kg/block | 25 |
| Size of block ice | (L×W×H)(mm) | 315×125×700 | |
| Size of ice maker | (L×W×H)(mm) | 3600×1650×2000 | |
| Size of water feeding pipe | 3/4" | ||
| Operating weight of block ice maker | Kg | 2100 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 0.5 Ton Direct System Block Ice Plant
The evaporator of direct system block ice machine adopts special aluminum alloy plate which is more durable and meets food hygiene requirements. Ice thawing and ice doffing are fully-automatic, therefore no manual work is needed. The ice is doffed by batch and the whole ice-doffing process only takes 25 minutes. The efficiency of direct system block ice maker guarantees cost-saving and time-saving.
Every direct refrigeration block ice machine can be customized according to our clients' requirements.
Photos of the 3.5 Ton Direct system Block Ice Plant for your reference
All Focusun Direct system block ice plants adopt modular and integrated design, which ensures it is easy to transport, move and install on the spot. All ice machines can be installed in 20ft or 40ft container with other relevant equipments. Focusun offers transparent, milky white ice and also colorful block ice.
3.5 Ton Direct System Block Ice Plant
Focusun direct system block ice machine adopts edge-leading refrigeration industry technology. After direct heat exchange between refrigerant and water, in 5 to 8 hours, water is frozen out into ice. By that time, PLC controls the machine automatically into ice doffing process. Direct system utilizes hot Freon to defrost ice; therefore, the defrosting process is fast.
Clients who purchased our 3.5 Ton Direct refrigeration system block ice maker
Testimonials
What our Clients say about this ice Plant around the Globe
We are more than happy with our 30 Tons machine and cooperation with Focusun. The technical and after-sales support is superb. We hope to continue our business cooperation and will recommend Focusun for your ice cooling solutions.
Managing Director: Shri Krishna Devcon Ltd
Focusun was able to customize a 28 Tons block ice machine for our construction project. We are satisfied with their technical knowhow and professionalism
Associated Construction & Investment Co.LLC
Our previous block ice plant gave us a lot of issues until we purchased the 15 Tons block ice machine from Focusun. We have no bad reviews about our product.
Balaji Distilleries Ltd.
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my block ice machine from Focusun. The product quality has exceeded my expectations.
Managing Director: Mr James Darko (Ghana)
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
5 Ton Direct System Block Ice Plant
Compared with traditional brine technology ice block machines, Focusun Direct refrigeration block ice machines adopt special alloy aluminum to ensure outstanding durability, and world renowned Bock/Bitzer compressors to guarantee enough power for reliable ice production. The daily capacity of Focusun direct refrigeration block ice machines can be customized in a range from 0.5 ton to 30 tons.
| Weight (kg/block) |
Dimension (L*W*H mm) |
Ice Making Time (Hour) |
Batch (times) |
|---|---|---|---|
| 10 | 155×100×750 | 5.5 | 4 |
| 20 | 245×125×750 | 7.5 | 3 |
| 25 | 315×125×750 | 7.5 | 3 |
| 50 | 480×160×750 | 11.5 | 2 |
| 75 | 420×200×1000 | 19.5 | 1 |
| 100 | 500×220×1000 | 22.5 | 1 |
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 5000 | |
| Cooling way | Water cooling | ||
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 20.9 |
| Installment power | Kw | 25 | |
| Cooling tower fan | Kw | 0.55 | |
| Cooling water pump | Kw | 1.5 | |
| Operating power of cold water pump | Kw | 0.55 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 43.3 | |
| Operating power | Kw | 17.99 | |
| Compressor COP/EER | Kw/kw | 2.41 | |
| Horse power | Hp | 25 | |
| Working time | Ice making time | h | 7.5 |
| Ice falling off time | h | 0.5 | |
| Dimension | Weight of block ice | Kg/block | 50 |
| Size of block ice | (L×W×H)(mm) | 480×160×700 | |
| Size of unit modular | (L×W×H)(mm) | 1400×1000×1250 | |
| Number of evaporator | 1 PC | ||
| Size of evaporator modular | (L×W×H)(mm) | 4800×1000×2200 | |
| Size of cooling tower | (O.D×H)(mm) | Ф1380×2170 | |
| Size of water feeding pipe of cooling tower | 1/2" | ||
| Size of cooling water pipes | 2" | ||
| Size of water feeding pipe | 1-1/4" | ||
| Operating weight | Unit | Kg | 960 |
| Evaporator | Kg | 2860 | |
| Cooling tower | Kg | 460 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 0.5 Ton Direct System Block Ice Plant
The evaporator of direct system block ice machine adopts special aluminum alloy plate which is more durable and meets food hygiene requirements. Ice thawing and ice doffing are fully-automatic, therefore no manual work is needed. The ice is doffed by batch and the whole ice-doffing process only takes 25 minutes. The efficiency of direct system block ice maker guarantees cost-saving and time-saving.
Every direct refrigeration block ice machine can be customized according to our clients' requirements.
Photos of the 5 Ton Direct system Block Ice Plant for your reference
All Focusun Direct system block ice plants adopt modular and integrated design, which ensures it is easy to transport, move and install on the spot. All ice machines can be installed in 20ft or 40ft container with other relevant equipments. Focusun offers transparent, milky white ice and also colorful block ice.
5 Ton Direct System Block Ice Plant
Focusun direct system block ice machine adopts edge-leading refrigeration industry technology. After direct heat exchange between refrigerant and water, in 5 to 8 hours, water is frozen out into ice. By that time, PLC controls the machine automatically into ice doffing process. Direct system utilizes hot Freon to defrost ice; therefore, the defrosting process is fast.
Clients who purchased our 5 Ton Direct refrigeration system block ice maker
Testimonials
What our Clients say about this ice Plant around the Globe
We are more than happy with our 30 Tons machine and cooperation with Focusun. The technical and after-sales support is superb. We hope to continue our business cooperation and will recommend Focusun for your ice cooling solutions.
Managing Director: Shri Krishna Devcon Ltd
Focusun was able to customize a 28 Tons block ice machine for our construction project. We are satisfied with their technical knowhow and professionalism
Associated Construction & Investment Co.LLC
Our previous block ice plant gave us a lot of issues until we purchased the 15 Tons block ice machine from Focusun. We have no bad reviews about our product.
Balaji Distilleries Ltd.
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my block ice machine from Focusun. The product quality has exceeded my expectations.
Managing Director: Mr James Darko (Ghana)
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
10 Ton Direct System Block Ice Plant
Compared with traditional brine technology ice block machines, Focusun Direct refrigeration block ice machines adopt special alloy aluminum to ensure outstanding durability, and world renowned Bock/Bitzer compressors to guarantee enough power for reliable ice production. The daily capacity of Focusun direct refrigeration block ice machines can be customized in a range from 0.5 ton to 30 tons.
| Weight (kg/block) |
Dimension (L*W*H mm) |
Ice Making Time (Hour) |
Batch (times) |
|---|---|---|---|
| 10 | 155×100×750 | 5.5 | 4 |
| 20 | 245×125×750 | 7.5 | 3 |
| 25 | 315×125×750 | 7.5 | 3 |
| 50 | 480×160×750 | 11.5 | 2 |
| 75 | 420×200×1000 | 19.5 | 1 |
| 100 | 500×220×1000 | 22.5 | 1 |
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 10000 | |
| Cooling way | Water cooling | ||
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 39.83 |
| Installment power | Kw | 50 | |
| Cooling tower fan | Kw | 1.1 | |
| Cooling water pump | Kw | 2.2 | |
| Operating power of cold water pump | Kw | 0.55 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 86.6 | |
| Operating power | Kw | 35.98 | |
| Compressor COP/EER | Kw/kw | 2.41 | |
| Horse power | Hp | 25×2sets | |
| Working time | Ice making time | h | 7.5 |
| Ice falling off time | h | 0.5 | |
| Dimension | Weight of block ice | Kg/block | 50 |
| Size of block ice | (L×W×H)(mm) | 480×160×700 | |
| Size of unit modular | (L×W×H)(mm) | 1800×1000×1450 | |
| Number of evaporator | 2 PC | ||
| Size of evaporator modular | (L×W×H)(mm) | 4800×1000×2200 | |
| Size of cooling tower | (O.D.×H)(mm) | Ф2000×2410 | |
| Size of water feeding pipe of cooling tower | 3/4" | ||
| Size of cooling water pipes | 2-1/2" | ||
| Size of water feeding pipe | 1-1/4" | ||
| Operating weight | Unit | Kg | 1680 |
| Evaporator | Kg | 2860 | |
| Cooling tower | Kg | 670 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 0.5 Ton Direct System Block Ice Plant
The evaporator of direct system block ice machine adopts special aluminum alloy plate which is more durable and meets food hygiene requirements. Ice thawing and ice doffing are fully-automatic, therefore no manual work is needed. The ice is doffed by batch and the whole ice-doffing process only takes 25 minutes. The efficiency of direct system block ice maker guarantees cost-saving and time-saving.
Every direct refrigeration block ice machine can be customized according to our clients' requirements.
Photos of the 10 Ton Direct system Block Ice Plant for your reference
All Focusun Direct system block ice plants adopt modular and integrated design, which ensures it is easy to transport, move and install on the spot. All ice machines can be installed in 20ft or 40ft container with other relevant equipments. Focusun offers transparent, milky white ice and also colorful block ice.
10 Ton Direct System Block Ice Plant
Focusun direct system block ice machine adopts edge-leading refrigeration industry technology. After direct heat exchange between refrigerant and water, in 5 to 8 hours, water is frozen out into ice. By that time, PLC controls the machine automatically into ice doffing process. Direct system utilizes hot Freon to defrost ice; therefore, the defrosting process is fast.
Clients who purchased our 10 Ton Direct refrigeration system block ice maker
Testimonials
What our Clients say about this ice Plant around the Globe
We are more than happy with our 30 Tons machine and cooperation with Focusun. The technical and after-sales support is superb. We hope to continue our business cooperation and will recommend Focusun for your ice cooling solutions.
Managing Director: Shri Krishna Devcon Ltd
Focusun was able to customize a 28 Tons block ice machine for our construction project. We are satisfied with their technical knowhow and professionalism
Associated Construction & Investment Co.LLC
Our previous block ice plant gave us a lot of issues until we purchased the 15 Tons block ice machine from Focusun. We have no bad reviews about our product.
Balaji Distilleries Ltd.
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my block ice machine from Focusun. The product quality has exceeded my expectations.
Managing Director: Mr James Darko (Ghana)
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
15 Ton Direct System Block Ice Plant
Compared with traditional brine technology ice block machines, Focusun Direct refrigeration block ice machines adopt special alloy aluminum to ensure outstanding durability, and world renowned Bock/Bitzer compressors to guarantee enough power for reliable ice production. The daily capacity of Focusun direct refrigeration block ice machines can be customized in a range from 0.5 ton to 30 tons.
| Weight (kg/block) |
Dimension (L*W*H mm) |
Ice Making Time (Hour) |
Batch (times) |
|---|---|---|---|
| 10 | 155×100×750 | 5.5 | 4 |
| 20 | 245×125×750 | 7.5 | 3 |
| 25 | 315×125×750 | 7.5 | 3 |
| 50 | 480×160×750 | 11.5 | 2 |
| 75 | 420×200×1000 | 19.5 | 1 |
| 100 | 500×220×1000 | 22.5 | 1 |
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 15000 | |
| Cooling way | Water cooling | ||
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 59.15 |
| Installment power | Kw | 75 | |
| Cooling tower fan | Kw | 1.5 | |
| Cooling water pump | Kw | 5.5 | |
| Operating power of cold water pump | Kw | 0.75 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 118.2 | |
| Operating power | Kw | 51.4 | |
| Compressor COP/EER | Kw/kw | 2.3 | |
| Horse power | Hp | 40×2sets | |
| Working time | Ice making time | h | 7.5 |
| Ice falling off time | h | 0.5 | |
| Dimension | Weight of block ice | Kg/block | 50 |
| Size of block ice | (L×W×H)(mm) | 480×160×700 | |
| Size of unit modular | (L×W×H)(mm) | 2000×1200×1600 | |
| Number of evaporator | 3 PC | ||
| Size of evaporator modular | (L×W×H)(mm) | 4800×1000×2200 | |
| Size of cooling tower | (O.D.×H)(mm) | Ф2175×2565 | |
| Size of water feeding pipe of cooling tower | 3/4" | ||
| Size of cooling water pipes | 4" | ||
| Size of water feeding pipe | 1-1/4" | ||
| Operating weight | Unit | Kg | 2160 |
| Evaporator | Kg | 2860 | |
| Cooling tower | Kg | 1120 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 0.5 Ton Direct System Block Ice Plant
The evaporator of direct system block ice machine adopts special aluminum alloy plate which is more durable and meets food hygiene requirements. Ice thawing and ice doffing are fully-automatic, therefore no manual work is needed. The ice is doffed by batch and the whole ice-doffing process only takes 25 minutes. The efficiency of direct system block ice maker guarantees cost-saving and time-saving.
Every direct refrigeration block ice machine can be customized according to our clients' requirements.
Photos of the 15 Ton Direct system Block Ice Plant for your reference
All Focusun Direct system block ice plants adopt modular and integrated design, which ensures it is easy to transport, move and install on the spot. All ice machines can be installed in 20ft or 40ft container with other relevant equipments. Focusun offers transparent, milky white ice and also colorful block ice.
15 Ton Direct System Block Ice Plant
Focusun direct system block ice machine adopts edge-leading refrigeration industry technology. After direct heat exchange between refrigerant and water, in 5 to 8 hours, water is frozen out into ice. By that time, PLC controls the machine automatically into ice doffing process. Direct system utilizes hot Freon to defrost ice; therefore, the defrosting process is fast.
Clients who purchased our 15 Ton Direct refrigeration system block ice maker
Testimonials
What our Clients say about this ice Plant around the Globe
We are more than happy with our 30 Tons machine and cooperation with Focusun. The technical and after-sales support is superb. We hope to continue our business cooperation and will recommend Focusun for your ice cooling solutions.
Managing Director: Shri Krishna Devcon Ltd
Focusun was able to customize a 28 Tons block ice machine for our construction project. We are satisfied with their technical knowhow and professionalism
Associated Construction & Investment Co.LLC
Our previous block ice plant gave us a lot of issues until we purchased the 15 Tons block ice machine from Focusun. We have no bad reviews about our product.
Balaji Distilleries Ltd.
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my block ice machine from Focusun. The product quality has exceeded my expectations.
Managing Director: Mr James Darko (Ghana)
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
20 Ton Direct System Block Ice Plant
Compared with traditional brine technology ice block machines, Focusun Direct refrigeration block ice machines adopt special alloy aluminum to ensure outstanding durability, and world renowned Bock/Bitzer compressors to guarantee enough power for reliable ice production. The daily capacity of Focusun direct refrigeration block ice machines can be customized in a range from 0.5 ton to 30 tons.
| Weight (kg/block) |
Dimension (L*W*H mm) |
Ice Making Time (Hour) |
Batch (times) |
|---|---|---|---|
| 10 | 155×100×750 | 5.5 | 4 |
| 20 | 245×125×750 | 7.5 | 3 |
| 25 | 315×125×750 | 7.5 | 3 |
| 50 | 480×160×750 | 11.5 | 2 |
| 75 | 420×200×1000 | 19.5 | 1 |
| 100 | 500×220×1000 | 22.5 | 1 |
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 20000 | |
| Cooling way | Water cooling | ||
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 85.55 |
| Installment power | Kw | 105 | |
| Cooling tower fan | Kw | 2.2 | |
| Cooling water pump | Kw | 5.5 | |
| Operating power of cold water pump | Kw | 0.75 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 155.7 | |
| Operating power | Kw | 77.1 | |
| Compressor COP/EER | Kw/kw | 2.3 | |
| Horse power | Hp | 40×3sets | |
| Working time | Ice making time | h | 7.5 |
| Ice falling off time | h | 0.5 | |
| Dimension | Weight of block ice | Kg/block | 50 |
| Size of block ice | (L×W×H)(mm) | 480×160×700 | |
| Size of unit modular | (L×W×H)(mm) | 2400×1600×1800 | |
| Number of evaporator | 4 PC | ||
| Size of evaporator modular | (L×W×H)(mm) | 4800×1000×2200 | |
| Size of cooling tower | (O.D.×H)(mm) | Ф2650×2645 | |
| Size of water feeding pipe of cooling tower | 1" | ||
| Size of cooling water pipes | 4" | ||
| Size of water feeding pipe | 1-1/4" | ||
| Operating weight | Unit | Kg | 2896 |
| Evaporator | Kg | 2860 | |
| Cooling tower | Kg | 1300 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 0.5 Ton Direct System Block Ice Plant
The evaporator of direct system block ice machine adopts special aluminum alloy plate which is more durable and meets food hygiene requirements. Ice thawing and ice doffing are fully-automatic, therefore no manual work is needed. The ice is doffed by batch and the whole ice-doffing process only takes 25 minutes. The efficiency of direct system block ice maker guarantees cost-saving and time-saving.
Every direct refrigeration block ice machine can be customized according to our clients' requirements.
Photos of the 20 Ton Direct system Block Ice Plant for your reference
All Focusun Direct system block ice plants adopt modular and integrated design, which ensures it is easy to transport, move and install on the spot. All ice machines can be installed in 20ft or 40ft container with other relevant equipments. Focusun offers transparent, milky white ice and also colorful block ice.
20 Ton Direct System Block Ice Plant
Focusun direct system block ice machine adopts edge-leading refrigeration industry technology. After direct heat exchange between refrigerant and water, in 5 to 8 hours, water is frozen out into ice. By that time, PLC controls the machine automatically into ice doffing process. Direct system utilizes hot Freon to defrost ice; therefore, the defrosting process is fast.
Clients who purchased our 20 Ton Direct refrigeration system block ice maker
Testimonials
What our Clients say about this ice Plant around the Globe
We are more than happy with our 30 Tons machine and cooperation with Focusun. The technical and after-sales support is superb. We hope to continue our business cooperation and will recommend Focusun for your ice cooling solutions.
Managing Director: Shri Krishna Devcon Ltd
Focusun was able to customize a 28 Tons block ice machine for our construction project. We are satisfied with their technical knowhow and professionalism
Associated Construction & Investment Co.LLC
Our previous block ice plant gave us a lot of issues until we purchased the 15 Tons block ice machine from Focusun. We have no bad reviews about our product.
Balaji Distilleries Ltd.
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my block ice machine from Focusun. The product quality has exceeded my expectations.
Managing Director: Mr James Darko (Ghana)
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
25 Ton Direct System Block Ice Plant
Compared with traditional brine technology ice block machines, Focusun Direct refrigeration block ice machines adopt special alloy aluminum to ensure outstanding durability, and world renowned Bock/Bitzer compressors to guarantee enough power for reliable ice production. The daily capacity of Focusun direct refrigeration block ice machines can be customized in a range from 0.5 ton to 30 tons.
| Weight (kg/block) |
Dimension (L*W*H mm) |
Ice Making Time (Hour) |
Batch (times) |
|---|---|---|---|
| 10 | 155×100×750 | 5.5 | 4 |
| 20 | 245×125×750 | 7.5 | 3 |
| 25 | 315×125×750 | 7.5 | 3 |
| 50 | 480×160×750 | 11.5 | 2 |
| 75 | 420×200×1000 | 19.5 | 1 |
| 100 | 500×220×1000 | 22.5 | 1 |
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 orR404A | ||
| Capacity | Kg/day | 25000 | |
| Cooling way | Water cooling | ||
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 94.05 |
| Installment power | Kw | 120 | |
| Cooling tower fan | Kw | 2.2 | |
| Cooling water pump | Kw | 7.5 | |
| Operating power of cold water pump | Kw | 0.75 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 199.2 | |
| Operating power | Kw | 83.6 | |
| Compressor COP/EER | Kw/kw | 2.38 | |
| Horse power | Hp | 30×4sets | |
| Working time | Ice making time | h | 7.5 |
| Ice falling off time | h | 0.5 | |
| Dimension | Weight of block ice | Kg/block | 50 |
| Size of block ice | (L×W×H)(mm) | 480×160×700 | |
| Size of unit modular | (L×W×H)(mm) | 3200×1800×2200 | |
| Number of evaporator | 5PC | ||
| Size of evaporator modular | (L×W×H)(mm) | 4800×1000×2200 | |
| Size of cooling tower | (O.D.×H)(mm) | Ф3050×2780 | |
| Size of water feeding pipe of cooling tower | 1" | ||
| Size of cooling water pipes | 5" | ||
| Size of water feeding pipe | 1-1/4" | ||
| Operating weight | Unit | Kg | 3260 |
| Evaporator | Kg | 2860 | |
| Cooling tower | Kg | 1630 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 0.5 Ton Direct System Block Ice Plant
The evaporator of direct system block ice machine adopts special aluminum alloy plate which is more durable and meets food hygiene requirements. Ice thawing and ice doffing are fully-automatic, therefore no manual work is needed. The ice is doffed by batch and the whole ice-doffing process only takes 25 minutes. The efficiency of direct system block ice maker guarantees cost-saving and time-saving.
Every direct refrigeration block ice machine can be customized according to our clients' requirements.
Photos of the 25 Ton Direct system Block Ice Plant for your reference
All Focusun Direct system block ice plants adopt modular and integrated design, which ensures it is easy to transport, move and install on the spot. All ice machines can be installed in 20ft or 40ft container with other relevant equipments. Focusun offers transparent, milky white ice and also colorful block ice.
25 Ton Direct System Block Ice Plant
Focusun direct system block ice machine adopts edge-leading refrigeration industry technology. After direct heat exchange between refrigerant and water, in 5 to 8 hours, water is frozen out into ice. By that time, PLC controls the machine automatically into ice doffing process. Direct system utilizes hot Freon to defrost ice; therefore, the defrosting process is fast.
Clients who purchased our 25 Ton Direct refrigeration system block ice maker
Testimonials
What our Clients say about this ice Plant around the Globe
We are more than happy with our 30 Tons machine and cooperation with Focusun. The technical and after-sales support is superb. We hope to continue our business cooperation and will recommend Focusun for your ice cooling solutions.
Managing Director: Shri Krishna Devcon Ltd
Focusun was able to customize a 28 Tons block ice machine for our construction project. We are satisfied with their technical knowhow and professionalism
Associated Construction & Investment Co.LLC
Our previous block ice plant gave us a lot of issues until we purchased the 15 Tons block ice machine from Focusun. We have no bad reviews about our product.
Balaji Distilleries Ltd.
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my block ice machine from Focusun. The product quality has exceeded my expectations.
Managing Director: Mr James Darko (Ghana)
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
30 Ton Direct System Block Ice Plant
Compared with traditional brine technology ice block machines, Focusun Direct refrigeration block ice machines adopt special alloy aluminum to ensure outstanding durability, and world renowned Bock/Bitzer compressors to guarantee enough power for reliable ice production. The daily capacity of Focusun direct refrigeration block ice machines can be customized in a range from 0.5 ton to 30 tons.
| Weight (kg/block) |
Dimension (L*W*H mm) |
Ice Making Time (Hour) |
Batch (times) |
|---|---|---|---|
| 10 | 155×100×750 | 5.5 | 4 |
| 20 | 245×125×750 | 7.5 | 3 |
| 25 | 315×125×750 | 7.5 | 3 |
| 50 | 480×160×750 | 11.5 | 2 |
| 75 | 420×200×1000 | 19.5 | 1 |
| 100 | 500×220×1000 | 22.5 | 1 |
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz | |
| Refrigerant | R22 or R404A | ||
| Capacity | Kg/day | 30000 | |
| Cooling way | Water cooling | ||
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 113.55 |
| Installment power | Kw | 150 | |
| Cooling tower fan | Kw | 3.7 | |
| Cooling water pump | Kw | 7.5 | |
| Operating power of cold water pump | Kw | 0.75 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 236.4 | |
| Operating power | Kw | 101.6 | |
| Compressor COP/EER | Kw/kw | 2.3 | |
| Horse power | Hp | 40×4sets | |
| Working time | Ice making time | h | 7.5 |
| Ice falling off time | h | 0.5 | |
| Dimension | Weight of block ice | Kg/block | 50 |
| Size of block ice | (L×W×H)(mm) | 480×160×700 | |
| Size of unit modular | (L×W×H)(mm) | 3200×2000×2200 | |
| Number of evaporator | 6PC | ||
| Size of evaporator modular | (L×W×H)(mm) | 4800×1000×2200 | |
| Size of cooling tower | (O.D.×H)(mm) | Ф3300×2785 | |
| Size of water feeding pipe of cooling tower | 1-1/4" | ||
| Size of cooling water pipes | 5" | ||
| Size of water feeding pipe | 11-1/4" | ||
| Operating weight | Unit | Kg | 3500 |
| Evaporator | Kg | 2860 | |
| Cooling tower | Kg | 2730 | |
| Water supply pressure requirement | Bar | 1 | |
Product details and specifications about 0.5 Ton Direct System Block Ice Plant
The evaporator of direct system block ice machine adopts special aluminum alloy plate which is more durable and meets food hygiene requirements. Ice thawing and ice doffing are fully-automatic, therefore no manual work is needed. The ice is doffed by batch and the whole ice-doffing process only takes 25 minutes. The efficiency of direct system block ice maker guarantees cost-saving and time-saving.
Every direct refrigeration block ice machine can be customized according to our clients' requirements.
Photos of the 30 Ton Direct system Block Ice Plant for your reference
All Focusun Direct system block ice plants adopt modular and integrated design, which ensures it is easy to transport, move and install on the spot. All ice machines can be installed in 20ft or 40ft container with other relevant equipments. Focusun offers transparent, milky white ice and also colorful block ice.
30 Ton Direct System Block Ice Plant
Focusun direct system block ice machine adopts edge-leading refrigeration industry technology. After direct heat exchange between refrigerant and water, in 5 to 8 hours, water is frozen out into ice. By that time, PLC controls the machine automatically into ice doffing process. Direct system utilizes hot Freon to defrost ice; therefore, the defrosting process is fast.
Clients who purchased our 30 Ton Direct refrigeration system block ice maker
Testimonials
What our Clients say about this ice Plant around the Globe
We are more than happy with our 30 Tons machine and cooperation with Focusun. The technical and after-sales support is superb. We hope to continue our business cooperation and will recommend Focusun for your ice cooling solutions.
Managing Director: Shri Krishna Devcon Ltd
Focusun was able to customize a 28 Tons block ice machine for our construction project. We are satisfied with their technical knowhow and professionalism
Associated Construction & Investment Co.LLC
Our previous block ice plant gave us a lot of issues until we purchased the 15 Tons block ice machine from Focusun. We have no bad reviews about our product.
Balaji Distilleries Ltd.
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my block ice machine from Focusun. The product quality has exceeded my expectations.
Managing Director: Mr James Darko (Ghana)
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- containerized brine system
- containerized direct system
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
5Tons Brine System Block Ice Plant
For many fisheries along the coastal areas, fishing tends to be seasonal, which means fishers may have to change from one location to another. In many cases, equipments would need to be moved along with the fishers. With their convenient mobility, this containerized brine system of block ice machine can be moved from coast to coast.
- Max capacity of brine system in 20'GP models: 5Ton/day
- Max capacity of brine system in 40'HQ models: 12.5Ton/day
| Weight (kg/block) |
Dimension (L*W*H mm) |
Ice Making Time (Hour) |
Batch (times) |
|---|---|---|---|
| 10 | 155×100×750 | 5.5 | 4 |
| 20 | 245×125×750 | 7.5 | 3 |
| 25 | 315×125×750 | 7.5 | 3 |
| 50 | 480×160×750 | 11.5 | 2 |
| 75 | 420×200×1000 | 19.5 | 1 |
| 100 | 500×220×1000 | 22.5 | 1 |
| Model | Capacity | Refrigerant | Total running power | Operating weight | Dimension | |
|---|---|---|---|---|---|---|
| kg/24h | － | kw | kg | L×W×H(mm) | ||
| 20 foot container | FIB-10BC | 1000 | R22/R404A | 6.0 | 960 | 6058×2438×2591 |
| FIB-30BC | 3000 | R22/R404A | 14.0 | 2180 | 6058×2438×2591 | |
| FIB-50BC | 5000 | R22/R404A | 20.9 | 3820 | 6058×2438×2591 | |
| 40 foot container | FIB-80BC | 8000 | R22/R404A | 30.79 | 5600 | 12192×2438×2895 |
| FIB-100BC | 10000 | R22/R404A | 33.98 | 7400 | 12192×2438×2895 | |
Product details and specifications about Containerized brine System Block Ice Plant
Focusun adopt Ti pipe as evaporator coil to improve the heat exchange efficiency and to ensure anti-rust, anti-corrosion performance and long life span. The thawing tank is heated by hot gas discharged from the compressor so that it is more energy-saving and suitable for low water temperature area.
Every containerized brine refrigeration block ice machine can be customized according to our clients' requirements.
Focusun Containerized Brine system Block Ice Machine
Focusun Containerized Brine system Block Ice Machine
Focusun Containerized Brine system Block Ice Machine
Focusun Containerized Brine system Block Ice Machine
Focusun Containerized Brine system Block Ice Machine
Focusun Containerized Brine system Block Ice Machine
Focusun Containerized Brine system Block Ice Machine
Photos of the Containerized brine system Block Ice Plant for your reference
All Focusun Brine system block ice plants can be installed in the ISO container with other relevant equipments, which forms a moving ice-making station and allow mobile ice manufacturing process, better space planning or convenient relocation.
Containerized Brine System Block Ice Plant
Focusun containerized brine refrigeration block ice machine can work in a relatively isolated environment, where the ambient temperature can be controlled at 20℃-25℃. What's more, the whole container has been specially treated and reinforced. It can perfectly protect the machine from the physical impact and outside dust. With all equipment installed in one container, we save you from the trouble of assembling and disassembling.
Clients who purchased our containerized brine system
Testimonials
What our Clients say about this ice Plant around the Globe
We are more than happy with our 30 Tons machine and cooperation with Focusun. The technical and after-sales support is superb. We hope to continue our business cooperations and will recommend Focusun for your ice cooling solutions.
Managing Director: Shri Krishna Devcon Ltd
Focusun was able to customize a 28 Tons block ice machine for our construction project. We are satisfied with their technical knowhow and professionalism
Associated Construction & Investment Co.LLC
Our previous block ice plant gave us a lot of issues until we purchased the 15 Tons block ice machine from Focusun. We have no bad reviews about our product.
Balaji Distilleries Ltd.
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my block ice machine from Focusun. The product quality has exceeded my expectations.
Managing Director: Mr James Darko (Ghana)
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
- Overview
- Specifications
- Photos
- Videos
- Our Clients
- Enquiry - Buy Here
5Tons Direct System Block Ice Plant
Focusun offers your favorable brine refrigeration block ice machine with the daily capacity from 5 tons to 30 tons. The whole ice producing process is automated combined with Siemens PLC controller, modular design and other unique Focusun German technologies. Test results have shown that Focusun block ice machine is 1.5 times faster than ordinary brine system block ice machine.
| Weight (kg/block) |
Dimension (L*W*H mm) |
Ice Making Time (Hour) |
Batch (times) |
|---|---|---|---|
| 10 | 155×100×750 | 5.5 | 4 |
| 20 | 245×125×750 | 7.5 | 3 |
| 25 | 315×125×750 | 7.5 | 3 |
| 50 | 480×160×750 | 11.5 | 2 |
| 75 | 420×200×1000 | 19.5 | 1 |
| 100 | 500×220×1000 | 22.5 | 1 |
| Model | Capacity | Refrigerant | Total running power | Operating weight | Dimension | |
|---|---|---|---|---|---|---|
| kg/24h | － | kw | kg | L×W×H(mm) | ||
| 20 foot container | FIB-10DC | 1000 | R22/R404A | 6.0 | 960 | 6058×2438×2591 |
| FIB-30DC | 3000 | R22/R404A | 14.0 | 2180 | 6058×2438×2591 | |
| FIB-50DC | 5000 | R22/R404A | 20.9 | 3820 | 6058×2438×2591 | |
| 40 foot container | FIB-100DC | 10000 | R22/R404A | 33.9 | 7400 | 12192×2438×2895 |
| FIB-150DC | 15000 | R22/R404A | 52.4 | 10740 | 12192×2438×2895 | |
| FIB-180DC | 18000 | R22/R404A | 55.1 | 12000 | 12192×2438×2895 | |
Product details and specifications about 5Tons Brine System Block Ice Plant
The evaporator of direct system block ice machine adopts special aluminum alloy plate which is more durable and meets food hygiene requirements. Ice thawing and ice doffing are fully-automatic, therefore no manual work is needed. The ice is doffed by batch and the whole ice-doffing process only takes 25 minutes. The efficiency of direct system block ice maker guarantees cost-saving and time-saving.
Every direct refrigeration block ice machine can be customized according to our clients' requirements.
Focusun Containerized Direct System Block Ice Machine
Focusun Containerized Direct System Block Ice Machine
Focusun Containerized Direct System Block Ice Machine
Focusun Containerized Direct System Block Ice Machine
Focusun Containerized Direct System Block Ice Machine
Focusun Containerized Direct System Block Ice Machine
Focusun Containerized Direct System Block Ice Machine
Focusun Containerized Direct System Block Ice Machine
Photos of the Containerized Direct System Block Ice Plant for your reference
All Focusun Direct system block ice plants can be installed in the ISO container with other relevant equipments, which forms a moving ice-making station and allow mobile ice manufacturing process, better space planning or convenient relocation.
Containerized direct System Block Ice Plant
Focusun containerized direct refrigeration block ice machine can work in a relatively isolated environment, where the ambient temperature can be controlled at 20℃-25℃. What's more, the whole container has been specially treated and reinforced. It can perfectly protect the machine from the physical impact and outside dust.
Clients who purchased our containerized direct system
Testimonials
What our Clients say about this ice Plant around the Globe
We are more than happy with our 30 Tons machine and cooperation with Focusun. The technical and after-sales support is superb. We hope to continue our business cooperations and will recommend Focusun for your ice cooling solutions.
Managing Director: Shri Krishna Devcon Ltd
Focusun was able to customize a 28 Tons block ice machine for our construction project. We are satisfied with their technical knowhow and professionalism
Associated Construction & Investment Co.LLC
Our previous block ice plant gave us a lot of issues until we purchased the 15 Tons block ice machine from Focusun. We have no bad reviews about our product.
Balaji Distilleries Ltd.
Ok I was sceptical about the quality of Chinese product after some bad experience in the past. However, I cannot say the same about my block ice machine from Focusun. The product quality has exceeded my expectations.
Managing Director: Mr James Darko (Ghana)
Send us your Enquiries, request Quotations or just Buy Here
Use our form below to get special information and our customer service team will quickly respond to you with an offer for your customized ice machine. Leave your number if you want us to call you back. If you don't like forms for any reason, you can simply send us an email to enquiry@focusun.com with all of your requirements and we will just be as happy to respond.
Contacts & Support
Focusun Refrigeration CorporationRoom 603, Baohong Center
No. 7755 Zhongchun Rd
Shanghai CHINA
ZipCode: 201100
Tel: +86-21-5108 9946
Fax: +86-21-5227 2259
Email: enquiry@focusun.com
Sales: sales@focusun.com
Marketing: marketing@focusun.com
Press: press@focusun.com
Newsletter: newsletter@focusun.com
